Why is a torque wrench important when tightening collet chucks?

Precision is at the core of CNC machining. Every detail—from tool selection to spindle speed—impacts performance. But one often-overlooked factor? The correct application of torque on ER nuts.



Applying the correct torque ensures:

✅ Consistent tool clamping, reducing the risk of slippage.
✅ Extended tool and collet life, preventing premature wear.
✅ Optimal cutting performance, reducing vibrations and noise.



Watch our step-by-step video tutorial on using a torque wrench for ER nuts below:





🔩 Understanding ER Nuts & Torque Wrenches



What is an ER Nut?



ER collets are widely used in CNC machining for their precision and versatility. However, to achieve maximum performance, the nut must be tightened with the correct torque: too loose, and the tool can slip; too tight, and you risk damaging the collet.



---

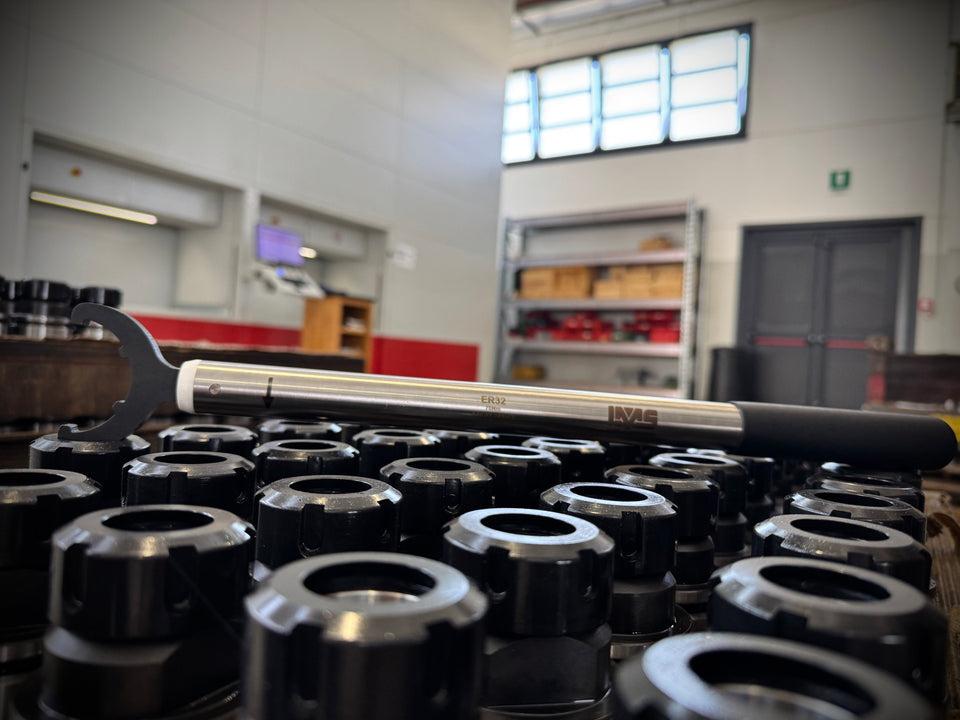

How a Torque Wrench Ensures Correct Tightening



A torque wrench allows you to apply precise force when tightening nuts, ensuring:
🔹 Precise tightening: Avoiding excessive or insufficient force.
🔹 Longer lifespan: Preventing collet deformation.
🔹 Operator safety: Reducing tool breakage and machine wear.



Recommended torque values for ER collets:



ER Collet Size	Recommended Torque (Nm)
ER11	18-22 Nm
ER16	30-35 Nm
ER20	50-60 Nm
ER25	80-100 Nm
ER32	120-140 Nm



How to Use a Torque Wrench for ER Nuts



Using a torque wrench is simple, but following the right steps is essential.



🔹 Step 1: Select the Appropriate Wrench



• Ensure the wrench's torque range matches your ER collet.
• Use a torque wrench adapter for better handling.



🔹 Step 2: Insert the Collet and Tool into the Spindle



• Insert the cutting tool into the collet before inserting it into the spindle.



🔹 Step 3: Set the Correct Torque on the Wrench



• Adjust the torque value based on the collet size (see table above).



🔹 Step 4: Tighten the ER Nut



• Use a spanner wrench to hold the spindle in place.
• Turn the torque wrench until it clicks, indicating that the torque has been reached.



🔹 Step 5: Verify Tightening



• Visually check and ensure the tool has no play before machining.



Choosing the Right Torque Wrench for ER Nuts



When choosing a torque wrench, look for:
✅ Precision: Digital or mechanical with ±4% accuracy.
✅ Torque adjustment: To cover different ER sizes.
✅ Ergonomic design: Comfortable grip for frequent use.
✅ Compatibility: With adapters for ER nuts.



IMS USA offers high-precision torque wrenches designed specifically for CNC applications. Discover our torque wrench catalog here



Improve Your CNC Machining with Torque Control



Applying the correct torque to ER nuts is a simple yet effective way to increase tool life, cutting precision, and safety in CNC machining.



💡 Need help choosing the right wrench? Contact IMS USA for dedicated technical advice.
